Categorie de produse: adaptoare SAE de 37 grade pentru flăcări
Material: oțel carbon, oțel inoxidabil sau aliaj de cupru.

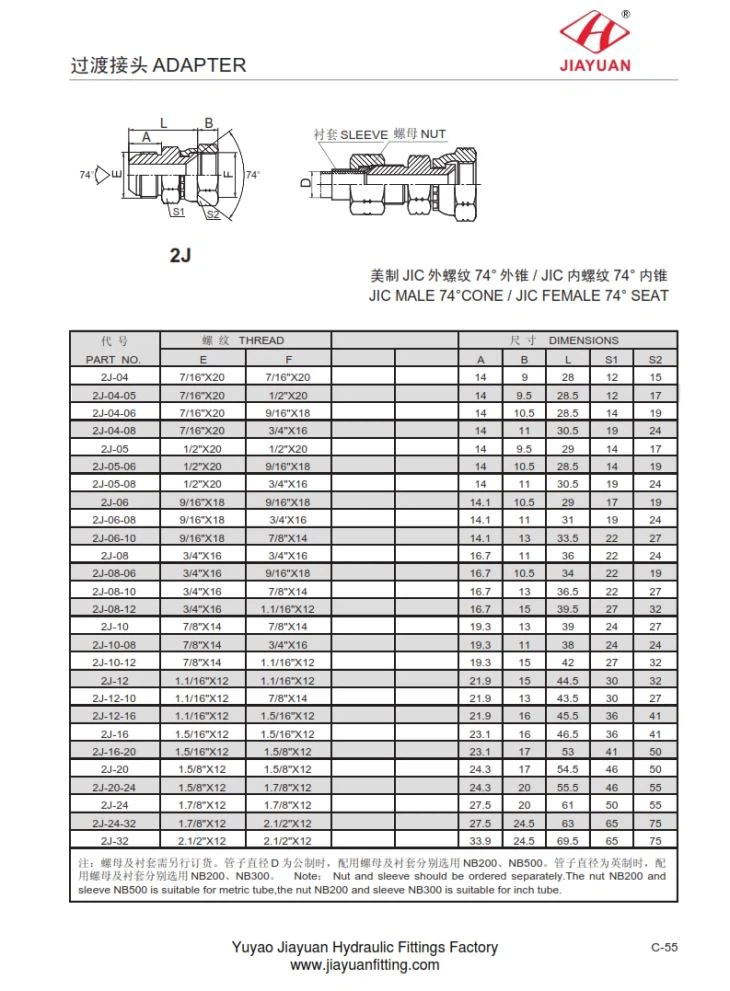

2J JIC MALE 74 ° CONE / JIC FEMALE 74 ° SEAT Diagrama de dimensiuni după cum urmează:
PA RT N O. | T HR EA D | DIM E N S I O NS | |||||
E | F | A | B | L | S 1 | S 2 | |
2 J- 04 | 7/16 " X 20 | 7/16 " X 20 | 14 | 9 | 28 | 12 | 15 |
2 J - 04 - 05 | 7/16 " X 20 | 1/2 " X 20 | 14 | 9.5 | 28.5 | 12 | 17 |
2 J- 04 - 06 | 7/16 " X 20 | 9/16 " X 18 | 14 | 10.5 | 28.5 | 14 | 19 |
2 J - 04 - 08 | 7/16 " X 20 | 3/4 " X 16 | 14 | 11 | 30.5 | 19 | 24 |
2 J- 05 | 1/2 " X 20 | 1/2 " X 20 | 14 | 9.5 | 29 | 14 | 17 |
2 J - 05 - 06 | 1/2 " X 20 | 9/16 " X 18 | 14 | 10.5 | 28.5 | 14 | 19 |
2 J - 05 - 08 | 1/2 " X 20 | 3/4 " X 16 | 14 | 11 | 30.5 | 19 | 24 |
2 J- 06 | 9/16 " X 18 | 9/16 " X 18 | 14.1 | 10.5 | 29 | 17 | 19 |
2 J- 06 - 08 | 9/16 " X 18 | 3/4 ' X 16 | 14.1 | 11 | 31 | 19 | 24 |
2 J- 06 - 10 | 9/16 " X 18 | 7/8 " X 14 | 14.1 | 13 | 33,5 | 22 | 27 |
2 J- 08 | 3/4 " X 16 | 3/4 " X 16 | 16.7 | 11 | 36 | 22 | 24 |
2 J- 08 - 06 | 3/4 " X 16 | 9/16 " X 18 | 16.7 | 10.5 | 34 | 22 | 19 |
2 J- 08 - 10 | 3/4 " X 16 | 7/8 " X 14 | 16.7 | 13 | 36.5 | 22 | 27 |
2 J- 08 - 12 | 3/4 " X 16 | 1.1 / 16 " X 12 | 16.7 | 15 | 39.5 | 27 | 32 |
2 J- 10 | 7/8 " X 14 | 7/8 " X 14 | 19.3 | 13 | 39 | 24 | 27 |
2 J - 10 - 08 | 7/8 " X 14 | 3/4 " X 16 | 19.3 | 11 | 38 | 24 | 24 |
2 J - 10 - 12 | 7/8 " X 14 | 1.1 / 16 " X 12 | 19.3 | 15 | 42 | 27 | 32 |
2 J- 12 | 1.1 / 16 " X 12 | 1.1 / 16 " X 12 | 21.9 | 15 | 44,5 | 30 | 32 |
2 J- 12 - 10 | 1.1 / 16 " X 12 | 7/8 " X 14 | 21.9 | 13 | 43.5 | 30 | 27 |
2 J- 12-16 | 1.1 / 16 " X 12 | 1,5 / 16 " X 12 | 21.9 | 16 | 45.5 | 36 | 41 |
2 J- 16 | 1,5 / 16 " X 12 | 1,5 / 16 " X 12 | 23.1 | 16 | 46,5 | 36 | 41 |
2 J- 16 - 20 | 1,5 / 16 " X 12 | 1,5 / 8 " X 12 | 23.1 | 17 | 53 | 41 | 50 |
2 J- 20 | 1,5 / 8 " X 12 | 1,5 / 8 " X 12 | 24.3 | 17 | 54,5 | 46 | 50 |
2 J- 20 - 24 | 1,5 / 8 " X 12 | 1,7 / 8 " X 12 | 24.3 | 20 | 55.5 | 46 | 55 |
2 J- 24 | 1,7 / 8 " X 12 | 1,7 / 8 " X 12 | 27,5 | 20 | 61 | 50 | 55 |
2 J- 24 - 32 | 1,7 / 8 " X 12 | 2.1 / 2 " X 12 | 27,5 | 24.5 | 63 | 65 | 75 |
2 J- 32 | 2.1 / 2 " X 12 | 2.1 / 2 " X 12 | 33,9 | 24.5 | 69,5 | 65 | 75 |
